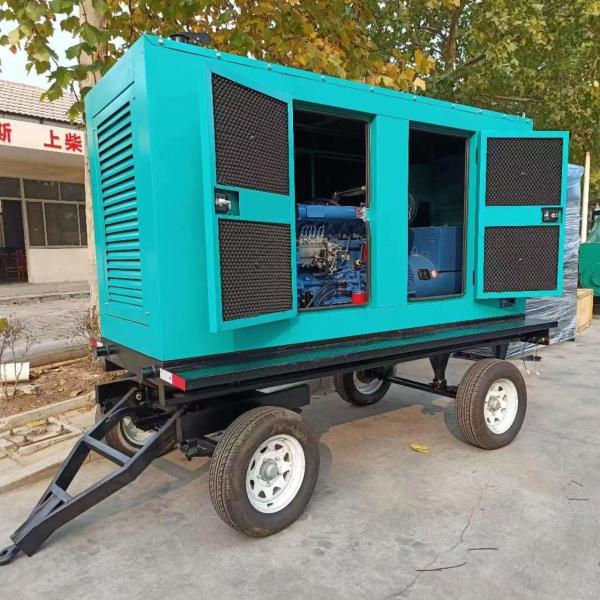

CNMC Factory Price 100kw Trailer Silent Diesel Generator 125kva Diesel Generator
Diesel generator Specifications
1. Powered by reliable engines
2. Branded alternator
3. Open type, silent type or super silent type generator
4. ISO, CE certified
Genset specs:
Engine Brands: Powered by Cummins,Powered by Perkins,Powered by Lovol,Powered by Deutz,Powered by Doosan, Powered by Mitsubishi, Powered by Kubota or other reliable Chinese engines such as Fawde and Laidong.
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away
Alternator:
Brands: By Stamford, By Leroy Somer, By Mecc Alte and Keypower brushless alternator
Rated output: 8 to 2,000kW/10 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Phase: 3-phase, 4-wire or 1-phase, 2-wire
Connection: y or other type connection
Rated speed: 1,500/1,800rpm
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: AVR automatic
1.0% voltage regulation in static conditions (maximum)
Protection class: IP23
Control panel: Deepsea, ComAp, Smartgen
| Model | 400V / 50Hz / 1500RPM | Diesel Engine | Silent type Dimension (L*W*H)(mm*mm*mm) |
| Standby | Prime | Model | Brand |
| (KVA/KW) | (KVA/KW) |
| YD-12 | 12/9.6 | 11/8.8 | YSAD380G | YANGDONG | 1860*900*1000 |
| YD-15 | 15 /12 | 13.5/10.8 | YD480G | 1900*900*1000 |
| YD-25 | 25/20 | 22.5/18 | YSD490G | 2100*950*1100 |
| YD-30 | 30/24 | 27.5/22 | Y4100G | 2200*990*1250 |
| YD-38 | 37.5/30 | 35/28 | Y4102G | 2200*990*1250 |
| | | | | | |
| Model | 120V - 240V 60Hz / 1800RPM | Diesel Engine With EPA tire 4 | Silent type Dimension (L*W*H)(mm*mm*mm) |
| Standby | Prime | Model | Brand |
| (KVA/KW) | (KVA/KW) |
| YD-18 | 17.5/14 | 16/13 | YD385ZLD (EPA) | YANGDONG | 1860*900*1000 |
| YD-25 | 25/20 | 22.5/18 | YD480ZLD (EPA) | 1900*900*1000 |
| YD-30 | 30/24 | 27.5/22 | YND485ZLD (EPA) | 2100*950*1100 |
| YD-44 | 44/35 | 40/32 | YSD490ZLD (EPA) | 2200*990*1250 |
| YD-46 | 46/37 | 42.5/34 | YSD490ZLD (EPA) | 2200*990*1250 |
1. PLC-800 model Standard control panel, including digital genset control model:HGM170, voltmeter, frequency meter, ampere meter, water temperature gauge, oil temperature gauge, oil pressure gauge, emergency button, preheating button, battery voltage gauge, running calculagraph, fuel level meter, circuit breaker
2. PLC-8000 (AMF) model Standard control panel, including digital LED genset control model:HGM6120, key switch, fuel level meter, Power indicator lamp, circuit breaker
Optional: Automatic transfer switch (ATS)
