    Stable Cummins Quiet Generator , 1500RMP Three Phase Diesel Generator

    Ask Lasest Price
    Brand Name : CUMMINS WEICHAI YUCHAI
    Model Number : CN100GF
    Certification : CE ISO
    Price : USD3000-USD15000
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 10000/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Stable Cummins Quiet Generator , 1500RMP Three Phase Diesel Generator

    Silent Type CUMMINS Diesel Generator Three-Phase 50Hz 250kva 200kw Power Generator Durable Generator With ATS
    6LTAA8.9-G2 Diesel Engine
    Belt drive system : Belt drive system with tensioner offering automatic belt tension.
    Maintenance: Both cylinder bore and cylinder head valve guide tube can be repaired by resisting.
    Connecting rod: Alloy steel with high strength and inclined cutting.
    Crankshaft: Alloy steel with whole bearing supporting and bearing and round corner harden.
    Cylinder block: Dragon door style cylinder block without liner and with water pump turbo house resisted.
    Fuel system: AD fuel injection pump with electrical governor or mechanical governor.
    Garret turbocharger: Bypass high efficient turbocharger.
    Piston: Silicon- aluminium alloy piston with dual Ni-resist and oil cooling.
    Starting function: Be started at -12℃ without assistant installation; Be started at -35℃ with assistant installation.
    Fuel consumption: Excellent fuel consumption with B.S.F.C 215g/kw.h.
    Construction characteristic: Simple and compact construction, fewer components and light weight.

    Alternator
    Wiring design: alternator wiring adopts 2/3 pitch winding unique technology new sine winding design, to avoid excessive neutral currents under the circumstances of the generator asymmetric load, nonlinear load, parallel connection
    Fully damp design:Rotor complete continuous and stable strong damp structure design, strengthen the alternator anti- interference capability, to ensure the alternator stable running and non oscillation under different working condition
    Excitation system design: unique orthogonal brushless harmonic excitation principle design excitation system, to ensure alternator
    self-excitation and dynamic self-following future, unique AVR design to ensure good adjusting and control protection

    SPECIFICATION
    (Diesel Generator Set Technical Data)

    Standby power (50HZ) 220KW / 275KVA

    Prime Power (50HZ) 200KW / 250KVA

    Voltage regulation : ≥±5%

    Voltage Regulation, Stead State : ≤±1%

    Sudden Voltage Warp (100% Sudden Reduce) : ≤+25%

    Sudden voltage Warp(Sudden Increase) : ≤-20%

    Voltage Stable Time (100% Sudden Reduce) : ≤6S

    Voltage Stable Time(Sudden Increase) : ≤6S

    Frequency Regulation, Stead State : ≤5%

    Frequency Waving : ≤1.5%

    Sudden Frequency Warp (100%Sudden Reduce) : ≤+12%

    Sudden Frequency Warp (Sudden Increase) : ≤-10%

    Frequency Recovery Time(100%Sudden Reduce) : ≤5S

    Frequency Recovery Time (Sudden Increase) : ≤5S

    DIESEL ENGINE
    Engine Model YC6M350L-D20
    Manufacturer GUANGXI YUCHAI MACHINERY Co.,Ltd
    Number of cylinders 6 cycle 4-cycle
    Air intake way Turbo-charge Bore(mm) 120
    Stroke (mm) 145 Compression ratio 17.5:1
    Displacement, total (L) 9.839 Engine weight,dry (kg) 980
    Engine speed (rpm) 1500 Noise dB(A) ≤102
    Base Output Power (kW) 235 Standby Power (kW) 258.5
    Emission T2 Starter Mode Electric
    Oil Capacity (L) 28 Oil Consumption g/(Kw.h) ≤1.0
    Min. Fuel Consumption g/(Kw.h) ≤197 Applicable Altitude (m) ≤2500
    ALTERNATOR
    Alternator Model cnmcCNF-200 Prime power (kW) 200KW
    Frequency . Speed .Voltage 50 HZ .1500 rpm.400 v
    Voltage regulation ±0.5% Rated power factor 0.8

    Alternators meet the requirement of BS EN 60034 and the relevant section of other international stan-dards such as BS5000, VDE 0530, NEMA MG1-32,IEC34, CSAC22.2-100, As1359, and other stand-ards and certifications can be considered on request.The 2/3 pitch design avoids excessive neutral currents. With the 2/3 pitch and carefully selected pole and tooth designs, ensures very low waveform distortion.Brushless alternator with brushless pilot exciter forexcellent load response.The insulation system is class H, easy parallelling with mains or other generators, standard 2/3 pitch stator windings avoid excessive neutral currents. Backed by worldwide service network.

    Genset Dimensions and Weights
    OPEN STYLE
    Overall Size L×W×H,mm 3000 1050 1700
    Weight(radiator model),net,kg 2100

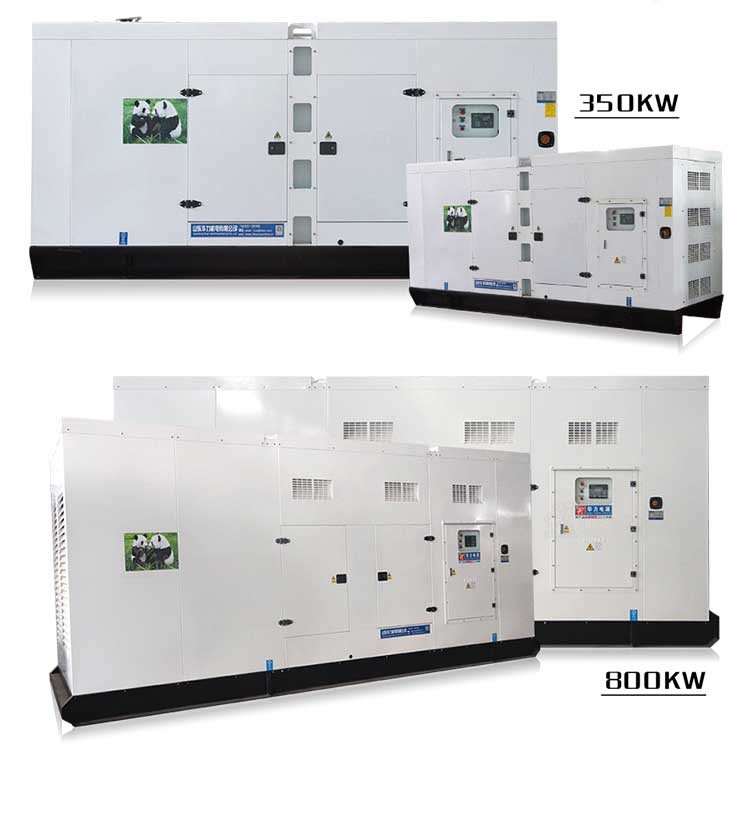

    SOUNDPROOF STYLE
    Overall Size L×W×H,mm 3900 1300 2080
    Weight(radiator model),net,kg 3100

    OPEN STYLE SOUNDPROOF STYLEStable Cummins Quiet Generator , 1500RMP Three Phase Diesel Generator
