Sound Proof Diesel Generator 30KVA/50KVA/100KVA Silent Diesel Generator Manufacturers Wholesale Cheap Diesel Genset
Detailed description
The novel design for gensets
Output:6.5kw-1600kw
Reliability quality and performance
Famous diesel engine
Warranty on global
Diesel generator set Silent / Soundproof type – Open type
Safety – Stability – Economy - Sufficient power
1. Our cooperate with famous diesel engine – Cummins, Perkins, Weichai, MTU
2. Brushless alternator -- Stamford, Leroy Somer, Marathon, JET.
3. Solid steel outer skin – 2MM to 4MM steel
4. High density sound-absorbing material -- sound insulation, fireproofing
5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.
6. Beautiful & practicably design, Bottom hole for fork, Water outlet & oil outlet
7. Double open door on both sides of the gensets. Spacious doors can check for every part of the engine and alternator.
Diesel generator set Silent / Soundproof type – Open type
Our gensets compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4
standards
Prime output power: 8kw-1600 kw (10kva-1600kva)
Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc.
Phase/connecting: 3 phase, 4wire.
Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm
Alternator excited type: Brushless, self excited or PMG
Insulation: Class H
Protection: IP21~IP23
Voltage regulation: AVR automatic control
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤ 90%
| Genset | CN100GF |
| Voltage | 230V/400V |
| Engine | WP6D132E200 |
| Prime Power/Standby Power | 120KW/132KW |
| Alternator | Leroy somer,Stamford,Marathon,Aosif |
| Controller | Deepsea, |
| Circuit Breaker | SCHNEIDER |
| Type | Open/Silent |
| Fuel Tank | Base Tank,External Daily Fuel Tank |

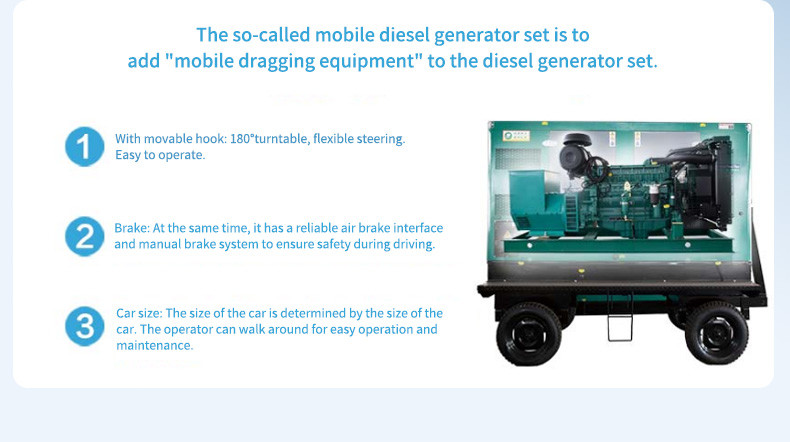

| Optional supporting products | Moveable/Trailer Type Diesel Generator /Synchronization System Automatic Transfer Switch /Dummy Load Day Tank |
CNMC Generator Supply Scope
| 1. Engine: | Brand-new engine. |
| 2. Alternator: | Brand new brushless alternator, single bearing, IP23, H insulation class. |
| 3. Base Frame: | Heavy duty steel channel base frame. |
| 4. Radiator: | With safety guard. |
| 5. Vibration Damper | Vibration damper between Engine/Alternator and base frame |
| 6. Breaker: | 3-pole output manual circuit breaker as standard, 4 poles for option |
| 7. Controller: | DSE6120, DSE7320, DSE8610 and other deepsea models, MRS10, MRS16, AMF20, AMF25 for option. |
| 8. Silencer: | Heavy duty industrial type silencer with flexible bellow,elbow. |
| 9. Battery: | Varta Brand,high capacity sealed maintenance free battery c/w battery cables. |
| 10. Fuel Tank: | 8 hours base fuel tank |
| 11. Tool Kits & Manuals: | Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc. |
